CSX Charlotte Subdivision, Bostic - Charlotte

Photos on this page depict line from Charlotte - Bostic, NC.
This line was originally the Seaboard Air Line, later Seaboard Coast Line, lastly, Family Lines prior to being folded into the CSX system. Piedmont & Northern's electrified line ran more or less parallel with the former SAL from Mt. Holly, NC to Pinoca yard in Charlotte. CSX Charlotte sub interchanges with the former Clinchfield at Bostic yard in Bostic, NC. Cherryville siding and the area around Charlotte (Pinoca yard, Freedom siding) now have signalling in otherwise DTC terrority.

Radio frequencies are:
  • AAR32 [160.590] road
  • AAR59 [160.995] dispatcher
  • AAR66 [161.100] road (Little block, Ellenboro, NC approaching Bostic yard).
    		•
    CSX Charlotte sub map in .pdf format of line from Monroe NC to Bostic NC.

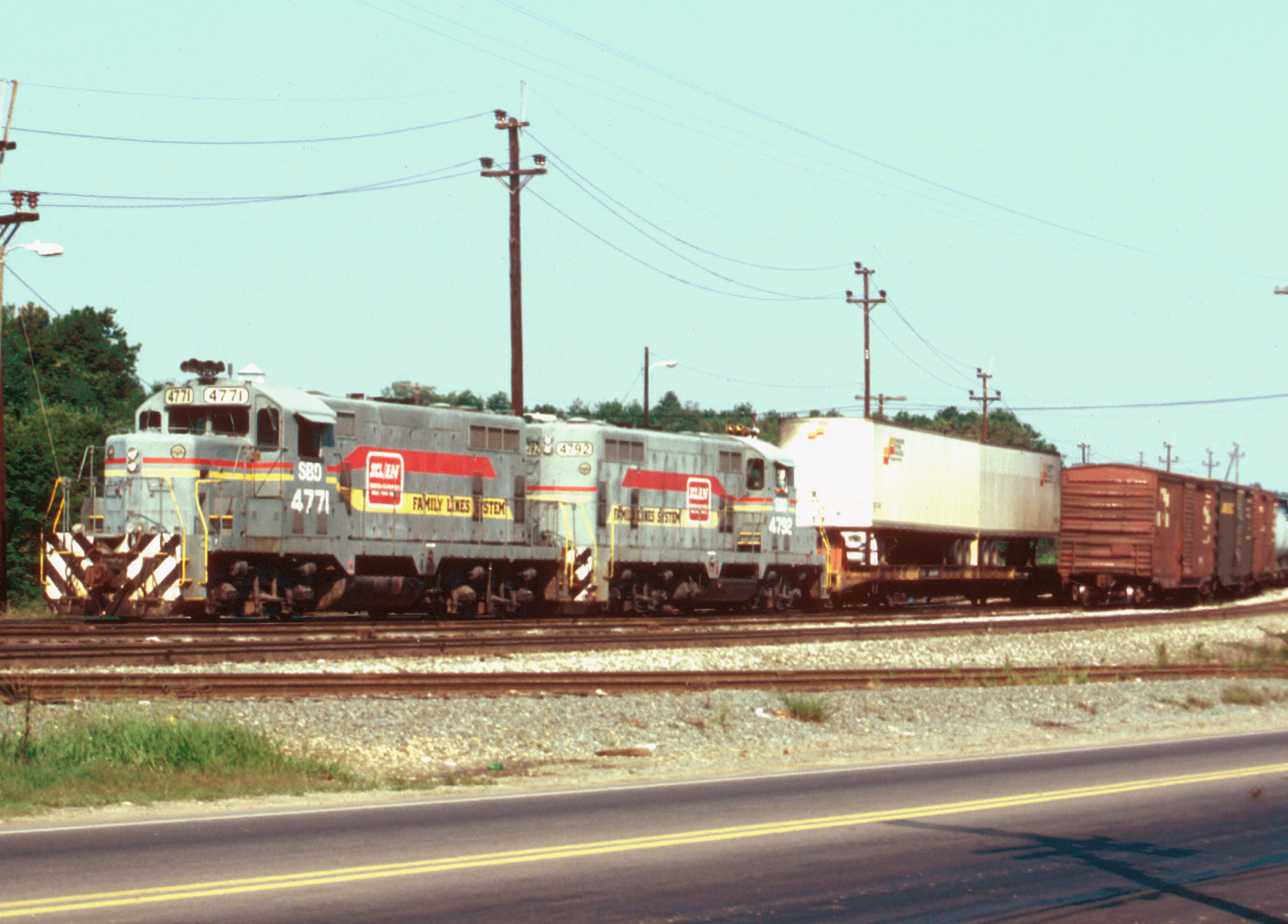

    4771/4792 rebuilt low nose GP's in SBD Family Lines color shove pigs at Pinoca yard, Sep '86.

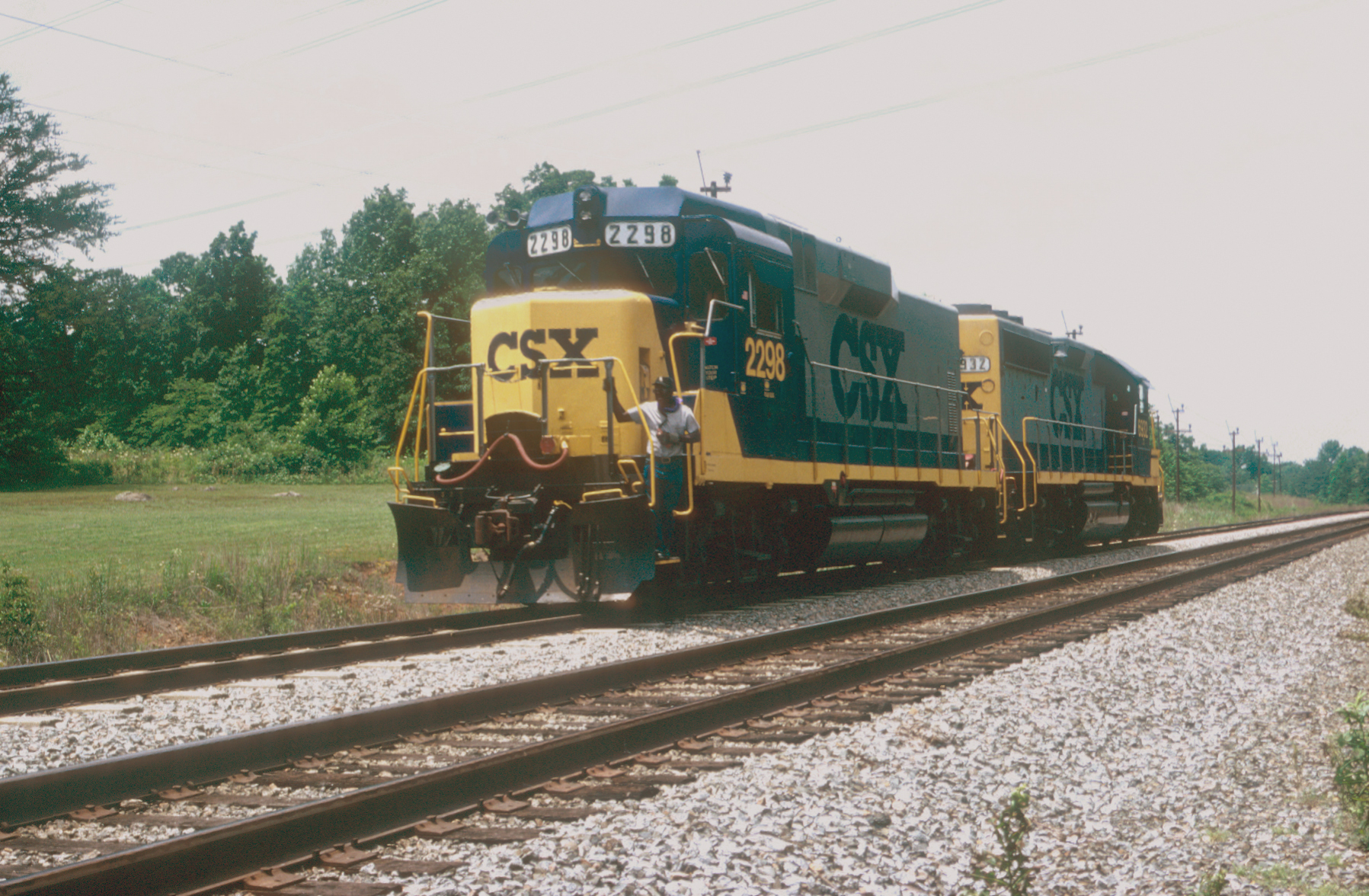

    GP30 slug and mother unit at the NE of Duke siding, June '92.
    Two Clinchfield units in separate paint schemes trail a SBD GE at Duke siding in July '84.

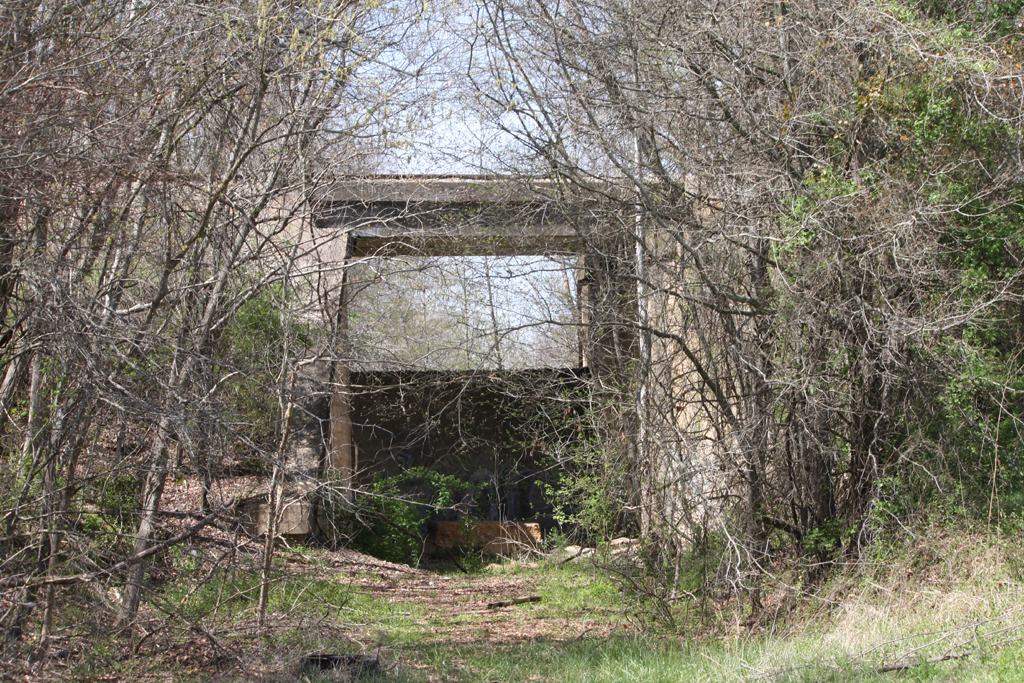

    View of SAL bridge crossing over the former Carolina and Northwestern RR in Lincolnton, NC.
    C&NW rails were pulled years ago. A short portion of the C&NW roadbed through downtown was converted to a paved walking track.
    Old indicator south of Cherryville siding. These were approach illuminated. This indicator was moved to the railroad museum in Cherryville.

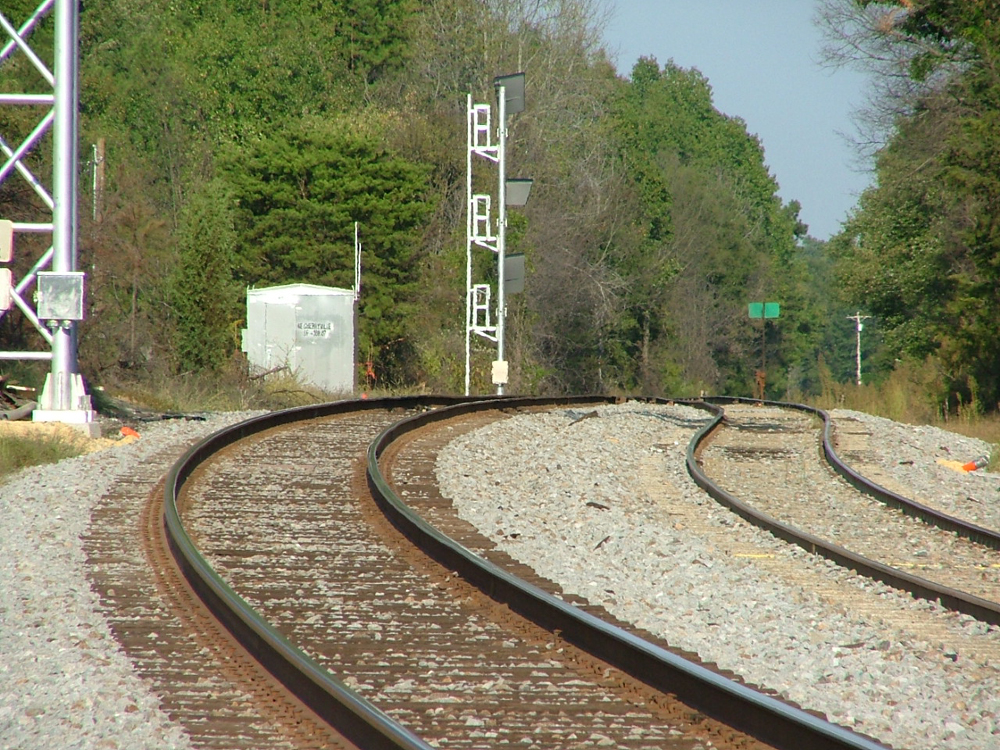

    New signal installation at Cherryville siding north end.

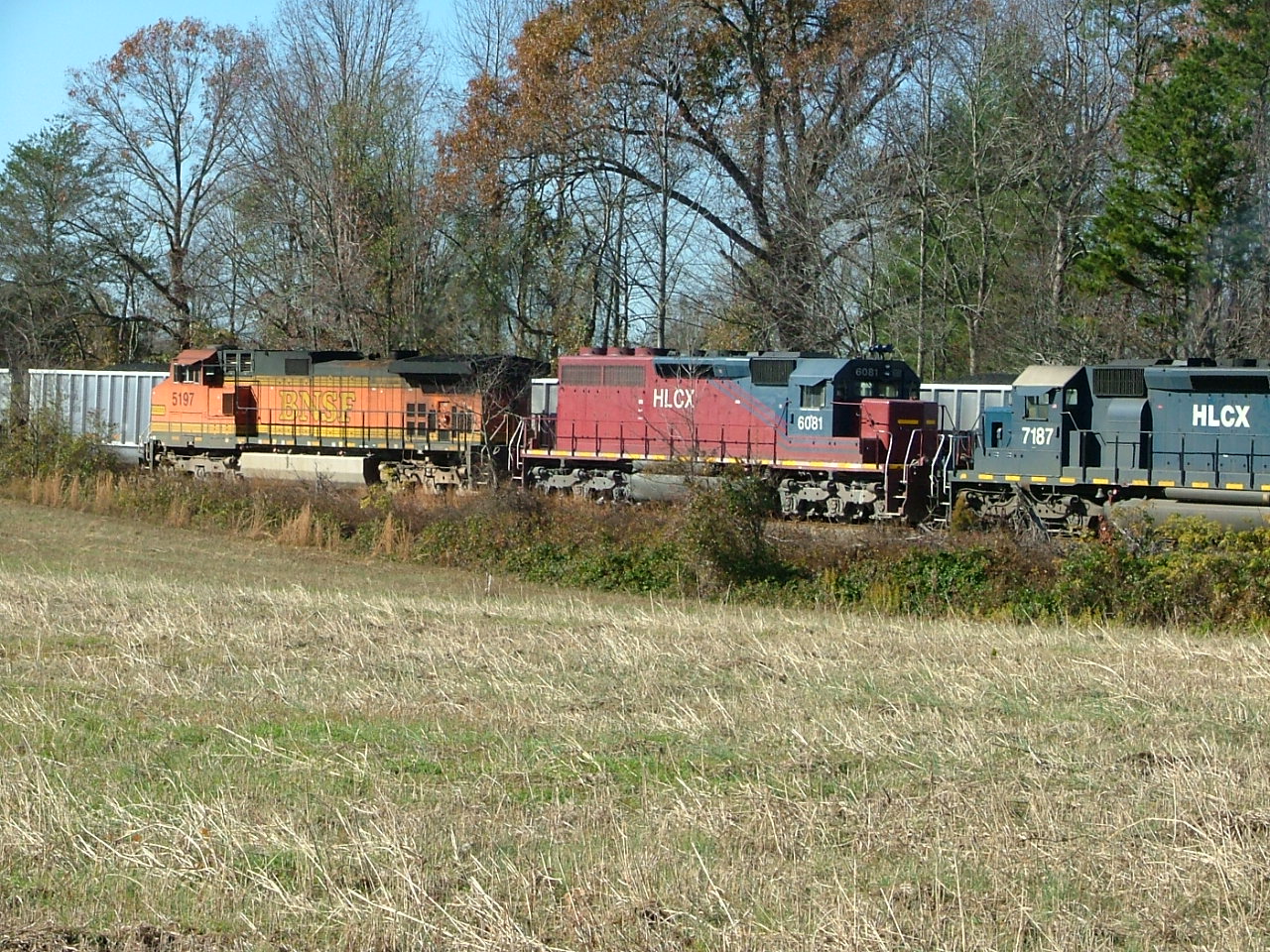

    With leasing units and foreign power, locomotive consists were colorful. Two CSX trains meet at Cherryville Siding.
    Northbound CSX 696 at new signal installation, Cherryville, NC. Bottom head governing siding contains four aspects. Third aspect is restricting (lunar). Cherryville is located on the former Seaboard Air Line between Bostic and Charlotte, NC.
    New signal installation at Cherryville siding south end.
    The rolling terrain of the Piedmont is evident in this telephoto view of Cherryville south end. A hopper train is in the siding waiting for an approaching northbound movement.

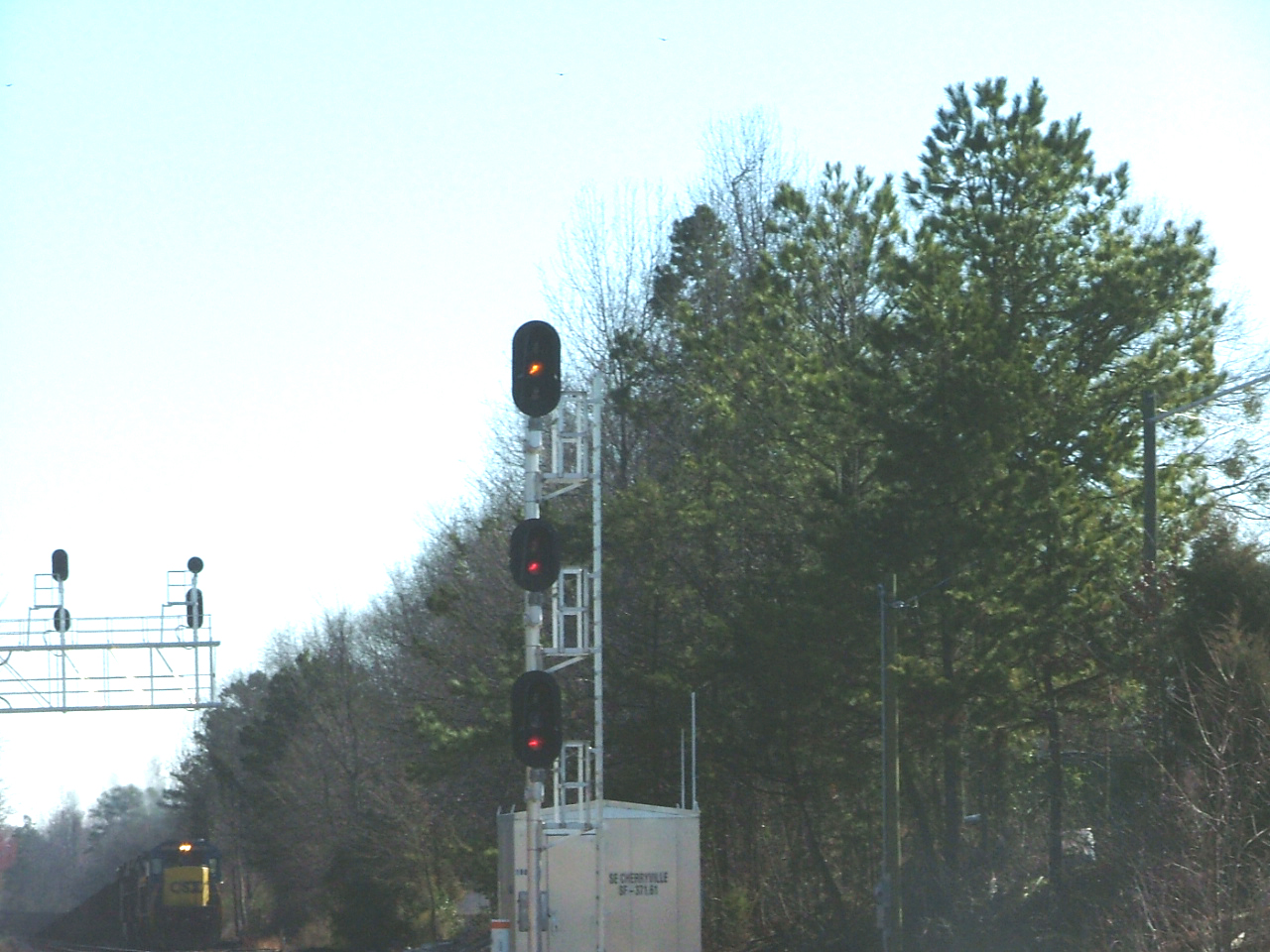

    Approach aspect at Cherryville siding south end.

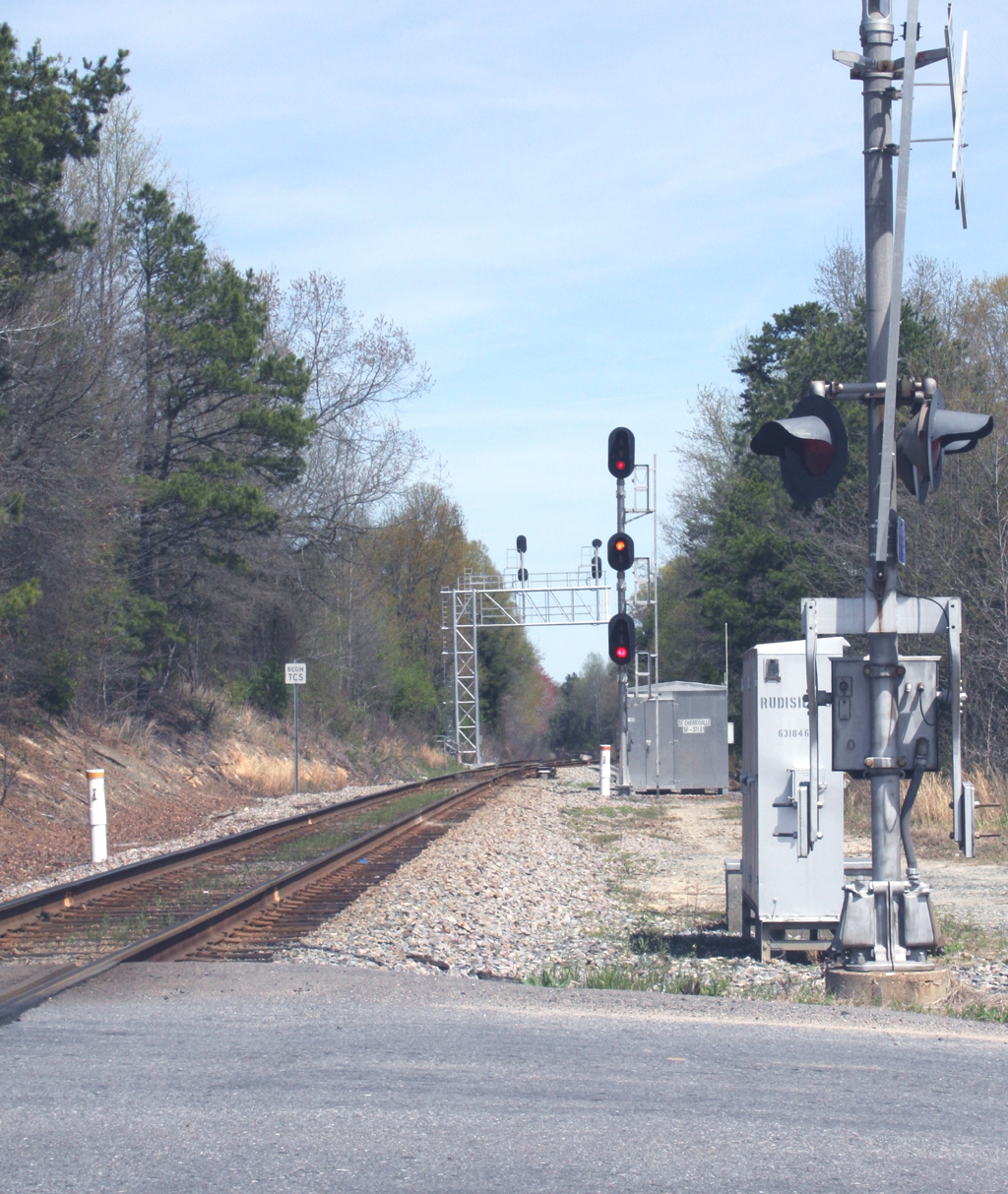

    Northbound signal at Rudisill St crossing in Cherryville, NC for approaching Q696. The medium approach signal indicated to the engineer this train will go in the siding to meet a southbound. Small trackside sign desiginates TCS begins.

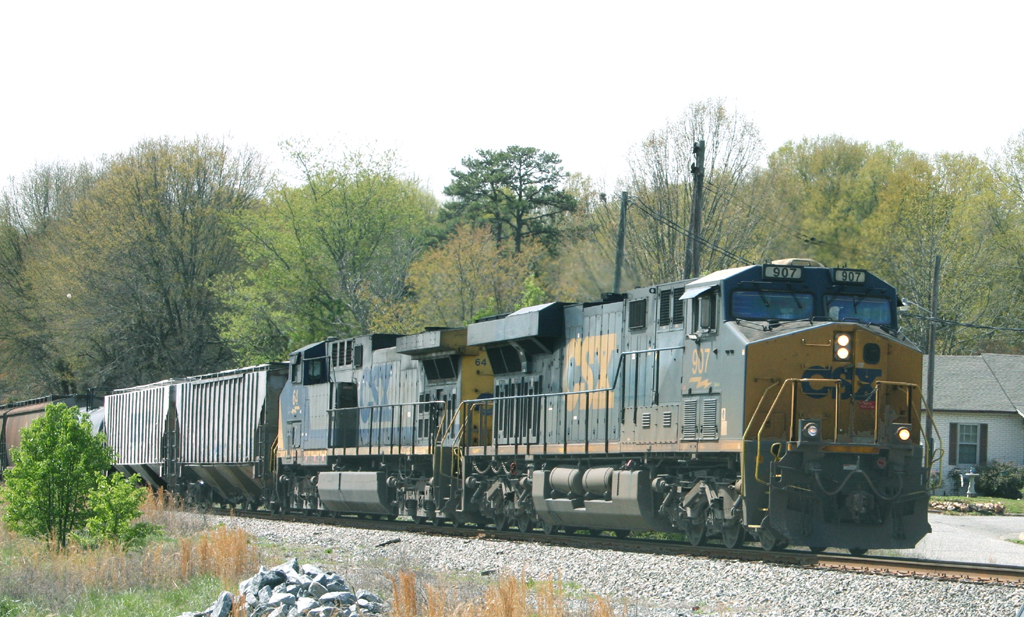

    Northbound CSX 696 at Cherryville, NC. This train will go in the siding to meet a southbound due to the medium approach aspect shown above.

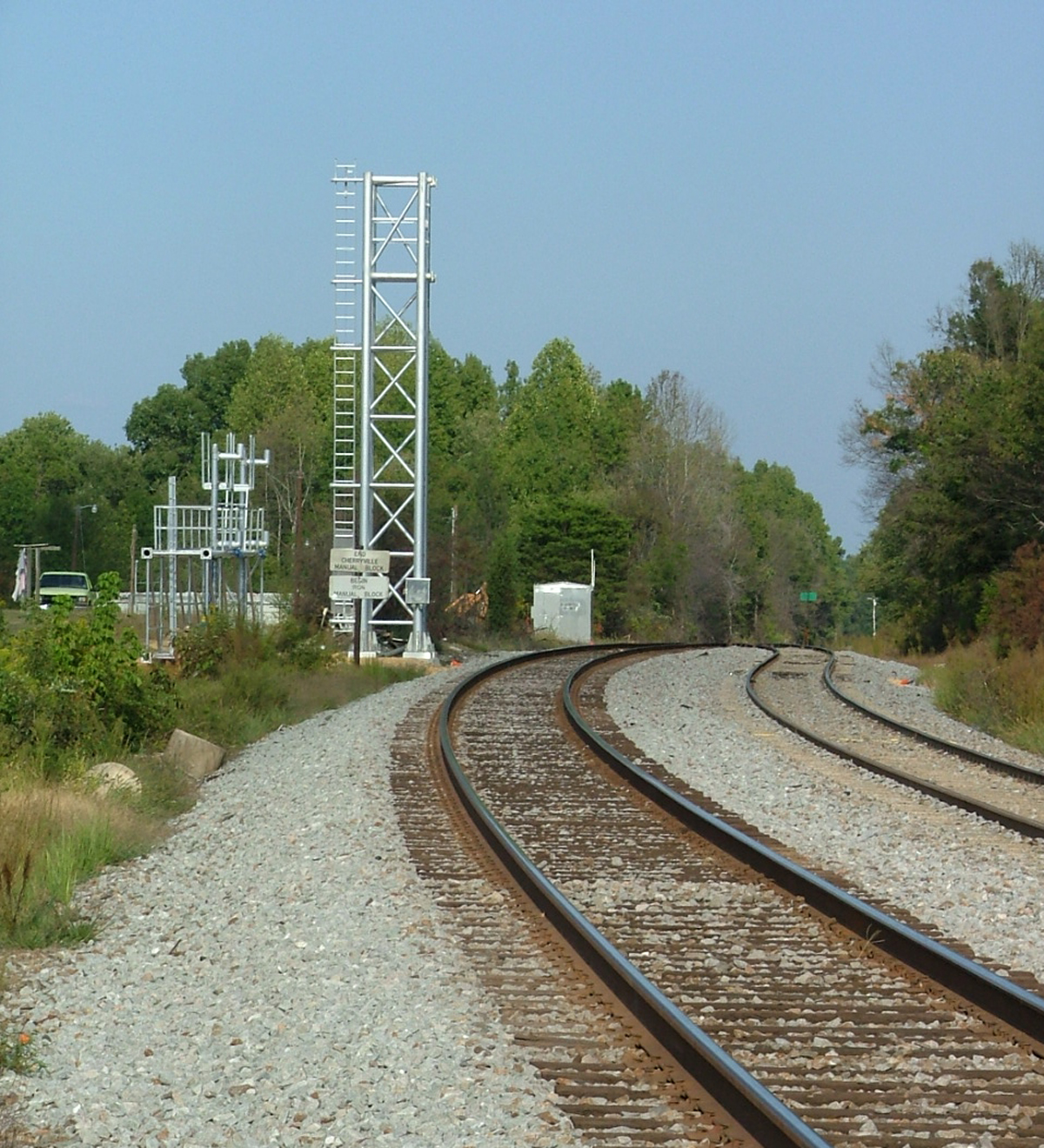

    Cherryville north end signal installation in progress.
    Another view of Cherryville siding signal installation. This is the north end southbound signal.

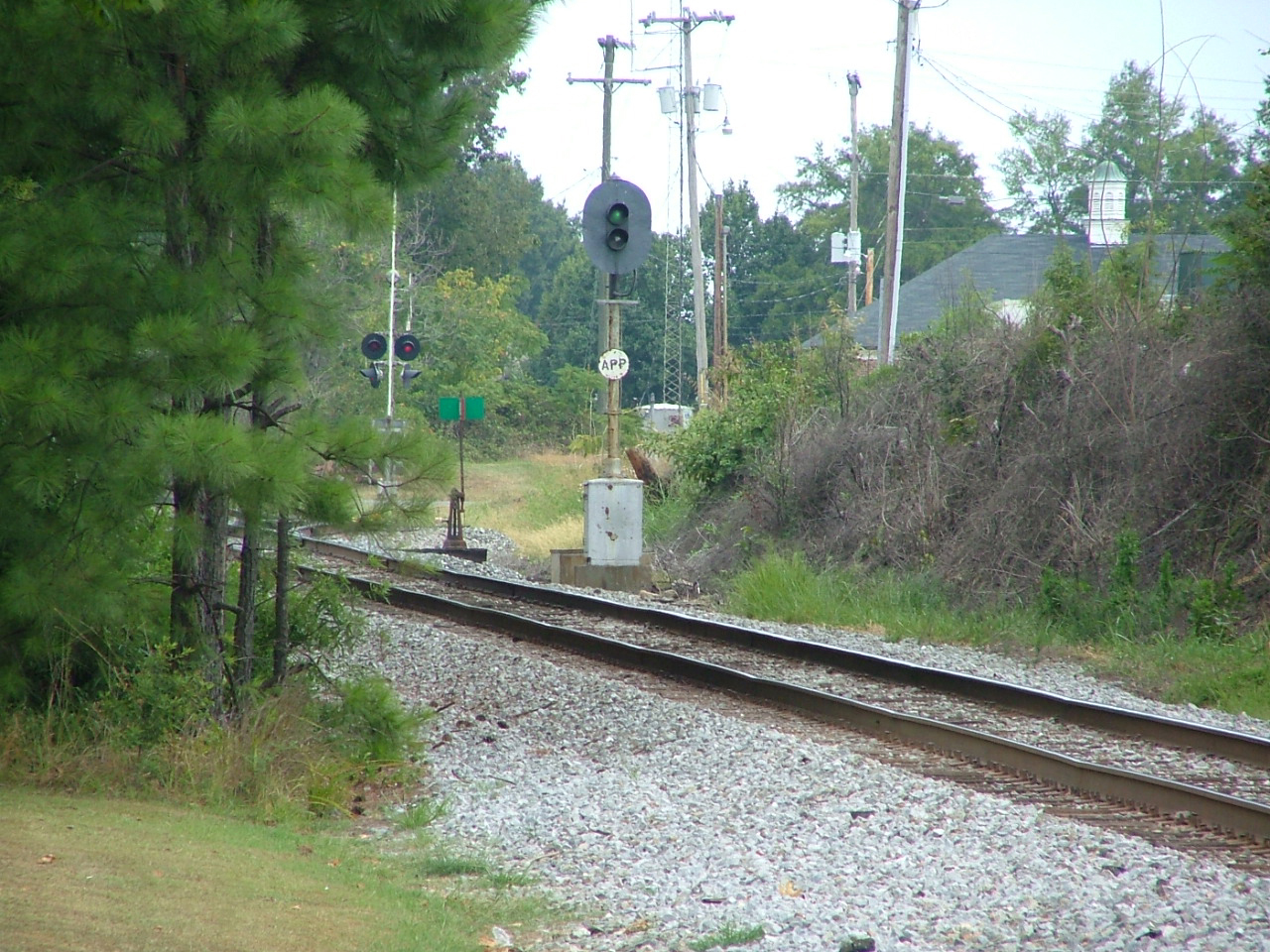

    Old indicator guarding south end of Cherryville siding. There was an approach indicator about two miles from each end in addition to the indicator at each spring switch. All were approach illuminated. Indicators were installed after the head on collision that occurred a few tenths of a mile north of this location. Indicators are still used at Duke siding near Mt.Holly, NC.
    Chessie 8415 leads a hopper train through Waco NC in Sep '88. This train will continue to Shelby, Lattimore, Mooresboro and Ellenboro before it arrives on former Clinchfield rails at Bostic, NC.
    A GE industrial unit at the Case Farms facility near Shelby.
    Its early '92, these CSX units are still in SCL and Chessie livery. This local is waiting on a short siding near the old SAL depot in Shelby, NC.
    CSX 8552 leads an empty hopper train past the old Seaboard depot in Shelby, NC. Nov '92.

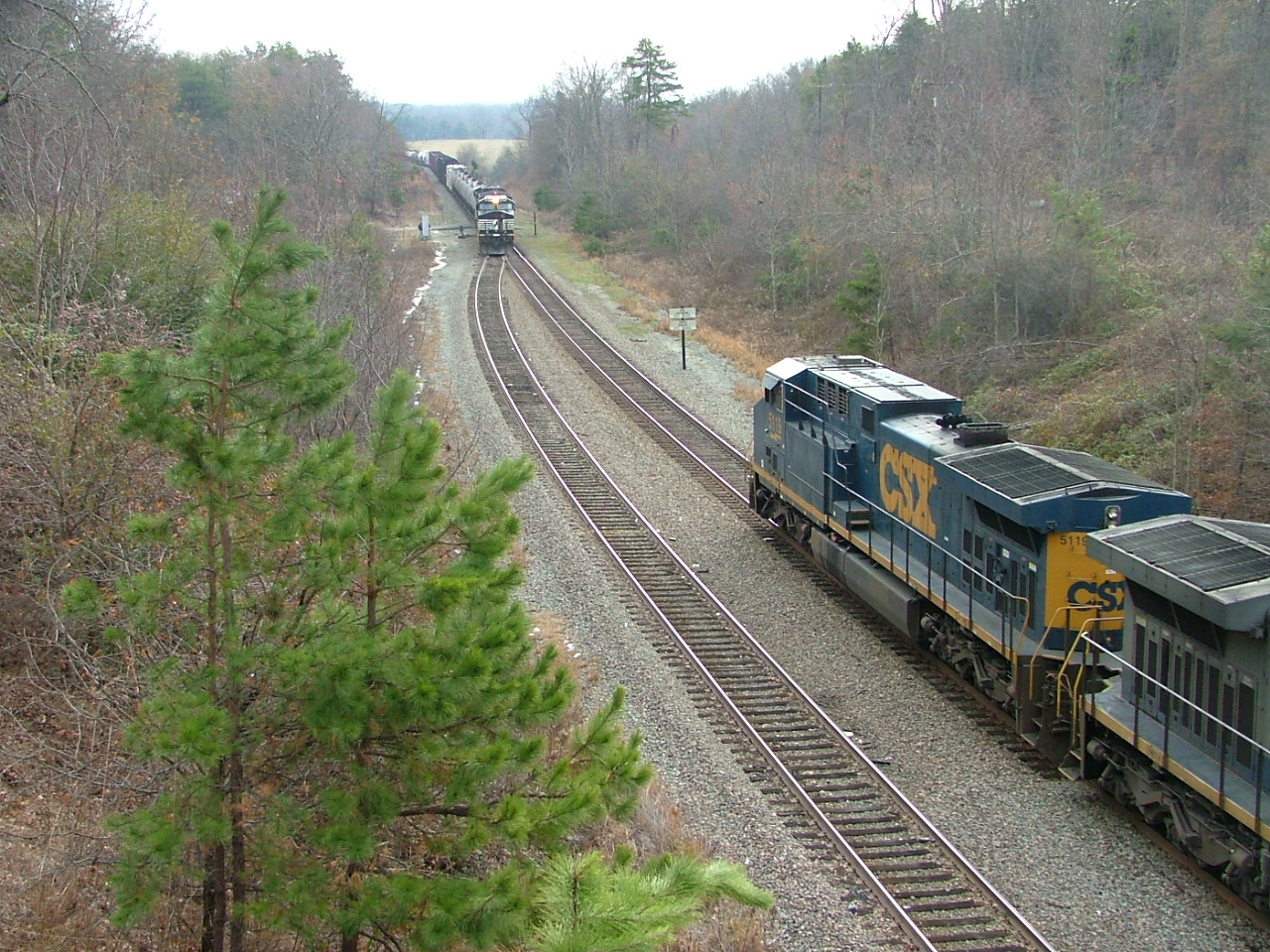

    Northbound CSX unit coal train stopped on the main for a meet with a southbound CSX train at Shelby siding. NS unit is leading southbound CSX train into the sidng. This photo is looking railroad north. Trains currently use DTMF operated turnouts and signals at each end of the siding.

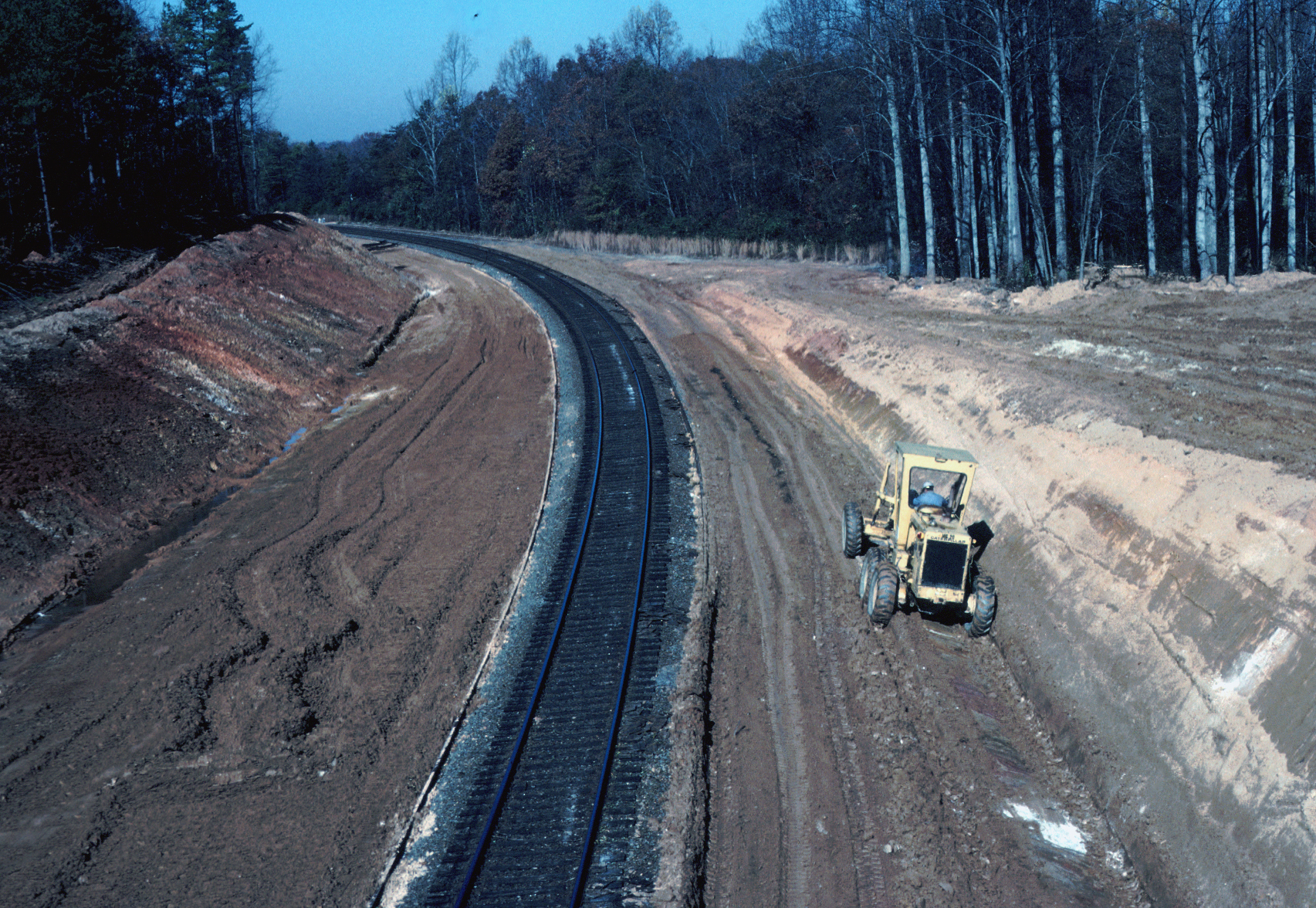

    This photo from 11/90 looking railroad south toward Lattimore, NC shows construction of Shelby siding. Part of the original Southern Railway SB roadbed was used for the siding. The old Southern roadbed can be seen in the distance coming from right side of photo behind tall trees. The Seaboard and Southern ran parallel to each other from this point to Conshel. The Southern crossed the Seaboard at grade near Shelby, then again at Lattimore.
